PE 60_2

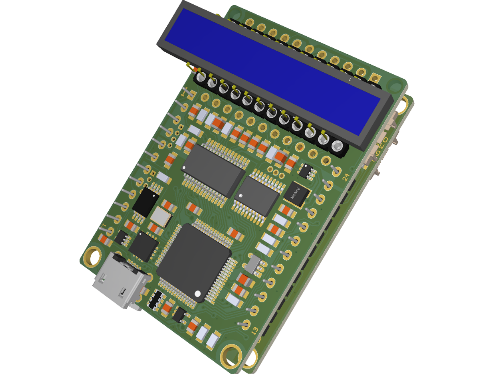

SDCM3

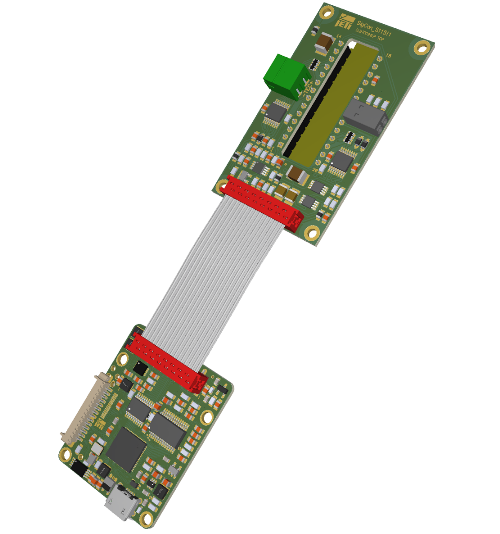

SDCM4


特点

功能强大，适合高速过程控制及多通道测试应用。能够兼容广泛的外围部件，及复杂的内部计算。

经济型单板解决方案，主要为线阵传感器及滨松微型光谱仪设计，可扩展支持蓝牙通讯。

便携应用，体积小，高度集成、模块化，用于小型光谱仪及系统集成，可选热电传感器制冷。

处理器

252 MHz - 32 bit microprocessor

96 MHz - 32 bit microprocessor

96 MHz - 32 bit microprocessor

速度

16 bit 10 MS/s ADC

16 bit 5 MS/s ADC

16 bit 5 MS/s ADC

接口

USB 2.0 high speed, Ethernet, TTL-UART, SPI, RS422/485

USB 2.0 full speed, TTL-UART, SPI (LAN, Bluetooth add-on board)

USB 2.0 high speed, TTL-UART, SPI

串口

Trigger, Shutter/Lamp, 8(16) GPIO and 3 analog Input pins

Trigger; Shutter/Lamp and 8 GPIO pins

User accessible nonvolatile memory of 64 kB

Trigger, Shutter/Lamp and 3(8) GPIO pins

可选项

Thermoelectric cooler and led source populated as TEC-S add-on board

microSD card; real time clock / calendar (RTCC); Li-ion battery powered

Thermoelectric cooler and led source populated as TEC-S add-on board

尺寸

Main board: 70 mm x 70 mm x 20 mm

TEC-S board: 36 mm x 36 mm x 7 mm

Main board: 36 mm x 53 mm x 15 mm

Add-on board: 36 mm x 53 mm x 12 mm

Main board: 36 mm x 45 mm x 10 mm

TEC-S board: 36 mm x 36 mm x 7 mm

支持的图像传感器

S837x, S11639, S13496, … (CMOS)

S838x, … (NMOS)

G13913 (InGaAs mini)

G11620, G92xx, … (uncooled InGaAs)

G1147x, G11620, G92xx, … (cooled InGaAs)

S10140, S10420, S11071, S1115x, S7030, … (BTCCD)

S10141, S11511, S11850, S1325x, S7031, … (cooled BTCCD)

Others on request

S11639, S13496x, S8378 (CMOS)

G11620 (InGaAs)

C12880MA, … (micro-Spectrometer)

S837x, S11639, S13496, … (CMOS)

S3901, S838x, … (NMOS) (one board version available)

G13913 (InGaAs mini) (only one board version – flex sensor)

G11620, G92xx, … (uncooled InGaAs)

G1147x, G11620, G92xx, … (cooled InGaAs)

S10140, S10420, S1115x, S7030, … (BTCCD)

S10141, S11511, S11850, S1325x, S7031, … (cooled BTCCD)

Others on request

固件功能

支持连续2D图像及垂直多通道模式读出

支持连续2D图像及垂直多通道模式读出

相关资料

PE60_2.pdf

PE60_2-Hardware-Description.pdf

SDCM3.pdf

SDCM3-Hardware-Description.pdf

SDCM4.pdf

SDCM4-Hardware-Description.pdf
